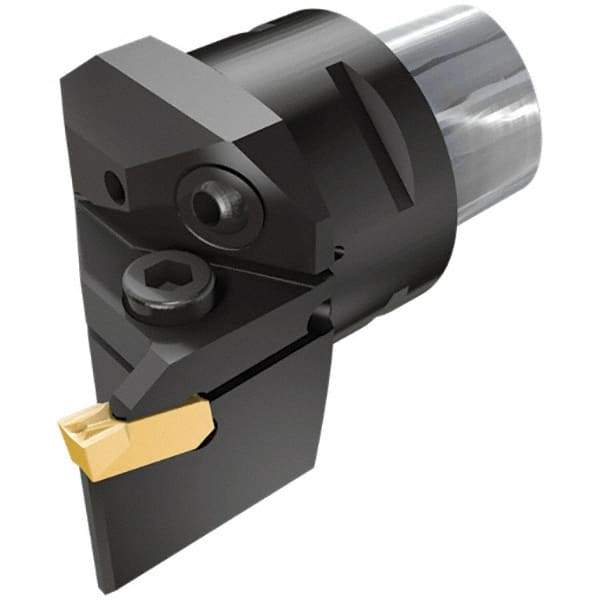

Iscar - GI.., GPV, TIP Insert, 55mm Head Length, 2.8mm Min Groove Width, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C4, Series Cut Grip
Item #: 42185181
Brand: Iscar
Model #: 2890688
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Cut Grip |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | GI..; GPV; TIP |
| Head Length/Projection (mm) | 55.00 |
| Head Length/Projection (Decimal Inch) | 2.1654 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 20.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7874 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40 |
| Minimum Groove Width (mm) | 2.80 |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
