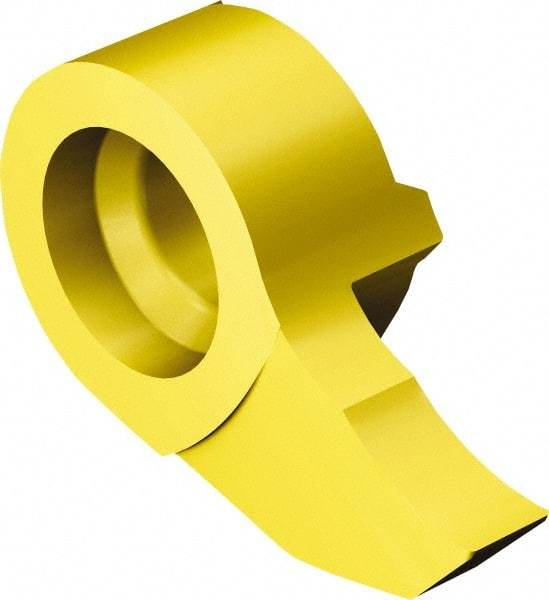

Sandvik Coromant - 07MB Grade 7015, 1mm Cutting Width Carbide Grooving Insert - 2.8mm Max Depth of Cut, Right Hand, Uncoated
Item #: 42179077
Brand: Sandvik Coromant
Model #: 5735544
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 07 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Manufacturer's Grade | 7015 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Overall Length (mm) | 4.70 |
| Overall Length (Decimal Inch) | 0.1850 |
| Series | CoroCut MB |
| ISO Number | MB07G1000011R7015 |
| Manufacturers Catalog Number | 5735544 |
