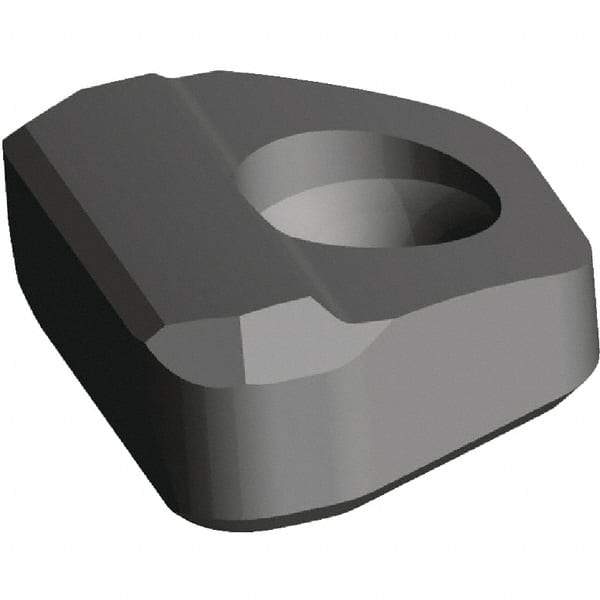

Kennametal - DPA07T3 Grade KCU40 Carbide Indexable Drill Insert - TiN/TiAlN Finish
Item #: 42126672
Brand: Kennametal
Model #: 5118324
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | DPA |
| Insert Size | 07T3 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Width (Decimal Inch) | 0.2756 |
| Width (mm) | 7.00 |
| Length (mm) | 8.60 |
| Length (Decimal Inch) | 0.3386 |
| Hole Diameter (mm) | 2.82 |
| Hole Diameter (Decimal Inch) | 0.1110 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
