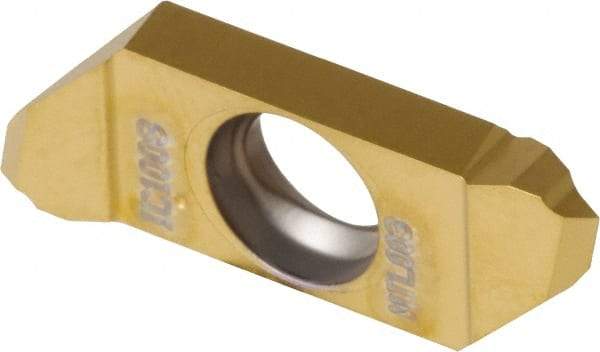

Iscar - SCI22 MT Grade IC1008, External Partial Profile 60° Threading Insert - 0.3 to 0.9mm & 28 to 83 TPI Ext Pitch, Left Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 42074716
Brand: Iscar
Model #: 6405438
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCI |
| Insert Size | 22 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| External Pitch/TPI | 0.30-0.90 mm; 28-83 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Width of Cutting Tip (mm) | 0.51 |
| Width of Cutting Tip (Decimal Inch) | 0.0200 |
| Series | IscarThread; Swisscut |
| Chipbreaker | MT |
| Tip to Top of Insert (mm) | 7.01 |
| Tip to Top of Insert (Decimal Inch) | 0.2760 |
| Length (Decimal Inch) | 0.8660 |
| Manufacturers Catalog Number | SCIL 22-MTL003 |
