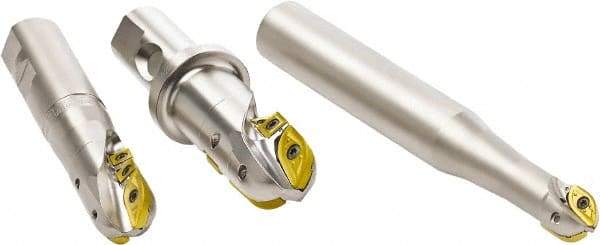

Seco - 50.01mm Cut Diam, 70mm Max Depth of Cut, 50.04mm Shank Diam, 9.05" OAL, Indexable Ball Nose End Mill - Straight Shank, R218.20 Toolholder, 218.20 250, SCE Insert
Item #: 42040758
Brand: Seco
Model #: 07807
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.01 |
| Cutting Diameter (Decimal Inch) | 1.9690 |
| Maximum Depth of Cut (mm) | 70.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7560 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 50.04 |
| Shank Diameter (Decimal Inch) | 1.9700 |
| Number of Ball Nose Inserts Used on Toolholder | 5 |
| Insert Style | 218.20 250; SCE |
| Toolholder Style | R218.20 |
| Overall Length (Decimal Inch) | 9.0500 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Maximum RPM | 3700 |
