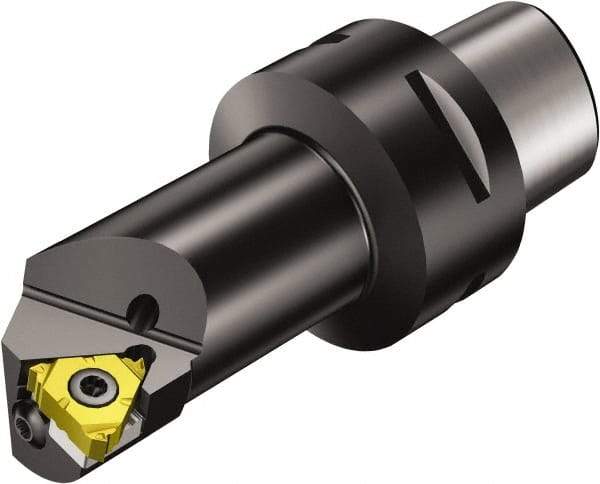

Sandvik Coromant - Insert Style Cx-266R/LKF, 70mm Head Length, Right Hand Cut, External Modular Threading Cutting Unit Head - System Size C4, 17mm Center to Cutting Edge, Series CoroThread 266
Item #: 41999459
Brand: Sandvik Coromant
Model #: 5727761
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroThread 266 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | Cx-266R/LKF |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 24.50 |
| Neck Diameter (Decimal Inch) | 0.9646 |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Radial Rake Angle | -15 |
