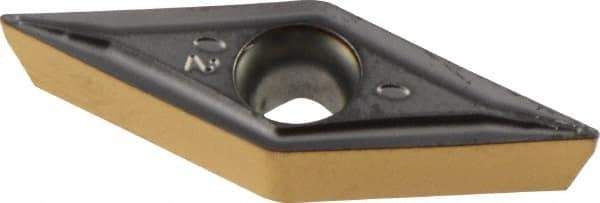

Iscar - VCMT220 SM Grade IC807 Carbide Turning Insert - TiAlN/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.0079" Corner Radius
Item #: 41879453
Brand: Iscar
Model #: 5550495
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMT |
| Insert Size | 220 |
| Material | Carbide |
| Length (mm) | 11.10 |
| Length (Decimal Inch) | 0.4370 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Material Grade | Submicron |
| Chip Breaker | SM |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Shape | Diamond |
