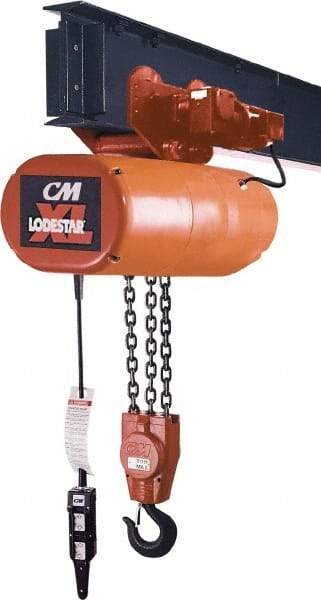

CM - 5 Ton Capacity, 12 FPM Lift Speed, 230/460 Volt, Hoist with Motorized Trolley - 5.5 Output hp, 15' Max Lift, 33-3/4" Min Headroom, 2 Chains
Item #: 41846858
Brand: CM
Model #: 5283M15
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hoist w/Motorized Trolley |
| Load Capacity (Ton) | 5 |
| Load Capacity (Lb.) | 10000 |
| Lifting Speed in Ft/Min | 12 |
| Maximum Lift Distance (Feet) | 15 |
| Lift Speed Type | Single |
| Trolley Speed Type | Single |
| Traversing Speed in Ft/Min | 50 |
| Minimum Headroom (Inch) | 33-3/4 |
| Minimum Headroom (Decimal Inch) | 33.7500 |
| Number of Chains | 2 |
| Lift Output Horse Power | 5.500 |
| Lift Amperage at 208/230 VAC | 14.5 |
| Lift Amperage at 460 Vac | 7.30 |
| Lift Motor Phase | Three |
| Traversing Motor Phase | 3 |
| Traversing Output Horse Power | 0.50 |
| Traversing Amperage at 208/230 VAC | 1.95 |
| Traversing Amperage at 460 VAC | 0.98 |
| Flange Width Range (Decimal Inch) | 4 - 6-1/4 |
| Controller | Pendant Control |
| Lifting Material | Chain |
