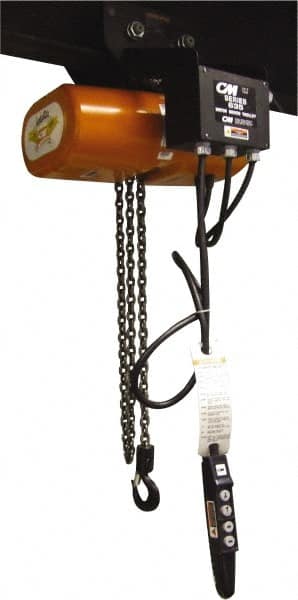

CM - 3 Ton Capacity, 5.5 FPM Lift Speed, 115 Volt, Hoist with Motorized Trolley - 1 Output hp, 15' Max Lift, 30-1/8" Min Headroom, 3 Chains
Item #: 41846767
Brand: CM
Model #: 9502/9561/9577
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hoist w/Motorized Trolley |
| Load Capacity (Ton) | 3 |
| Load Capacity (Lb.) | 6000 |
| Lifting Speed in Ft/Min | 5.5 |
| Maximum Lift Distance (Feet) | 15 |
| Lift Speed Type | Single |
| Trolley Speed Type | Single |
| Traversing Speed in Ft/Min | 75 |
| Minimum Headroom (Inch) | 30-1/8 |
| Minimum Headroom (Decimal Inch) | 30.1250 |
| Voltage | 115 |
| Number of Chains | 3 |
| Lift Output Horse Power | 1.000 |
| Lift Amperage at 208/230 VAC | 11.9 |
| Lift Motor Phase | Single |
| Traversing Motor Phase | 1 |
| Traversing Output Horse Power | 0.25 |
| Traversing Amperage at 208/230 VAC | 3.40 |
| Flange Width Range (Decimal Inch) | 4-5.625 |
| Controller | Pendant Control |
| Lifting Material | Chain |
