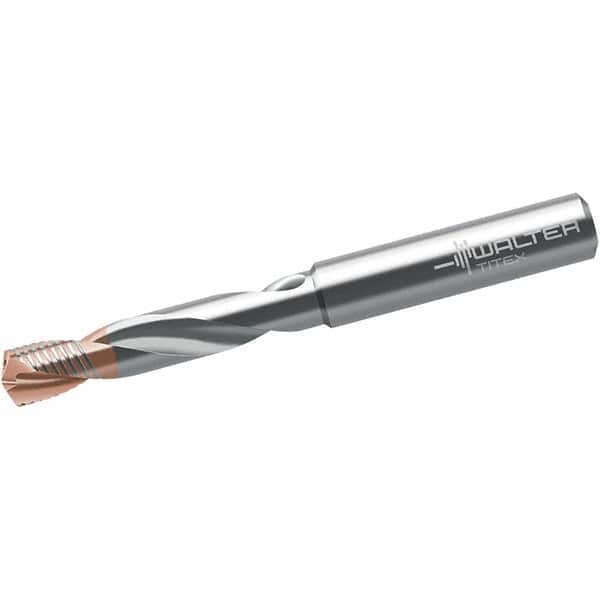

Walter-Titex - 9/16" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiNAl/AlCrN Finish, Right Hand Cut, 65mm Flute Length, 115mm OAL, Straight Shank, Through Coolant
Item #: 41794082
Brand: Walter-Titex
Model #: 6745173
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Drill Bit Size (Inch) | 9/16 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiNAl/AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 2.5590 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5280 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Maximum Drilling Depth (mm) | 45.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.7720 |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 2.60 |
| Drill Point Length (Decimal Inch) | 0.1020 |
| Series/List | DC170 |
