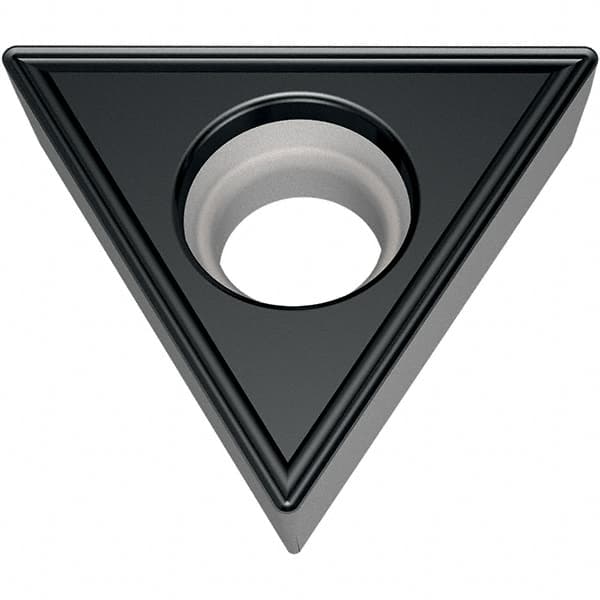

Walter - Indexable Profiling Toolholders ISO Number: TCMT110208-FK6 WKK10S Manufacturers Catalog Number: 6733997
Item #: 41633686
Brand: Walter
Model #: 6733997
Exact Tooling IR#: 04
Product Specifications
Indexable Profiling Toolholders; ISO Number: TCMT110208-FK6 WKK10S ; Manufacturers Catalog Number: 6733997 ; Shape: Triangular ; Thickness (Decimal Inch): 0.0940 ; Series: TCMT-FK6 ; Maximum Depth of Cut (mm): 10.74
| ISO Number | TCMT110208-FK6 WKK10S |
| Manufacturers Catalog Number | 6733997 |
| Shape | Triangular |
| Thickness (Decimal Inch) | 0.0940 |
| Series | TCMT-FK6 |
| Maximum Depth of Cut (mm) | 10.74 |
| Maximum Depth of Cut (Decimal Inch) | 0.4230 |
| Manufacturer's Grade | WKK10S |
| Length (mm) | 10.74 |
| Length (Decimal Inch) | 0.4230 |
| Insert Style | TCMT |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Corner Radius (mm) | 0.8 |
| Coating | TiCN+Al2O3+(TiCN) |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chip Breaker | FK6 |
| Proprietary Coating Designation | WKK10S |
| Included Angle | 60 |
| Relief Angle | 7 |
| Thickness (mm) | 2.38 |
| Insert Hand | Neutral |
| Insert Length (Decimal Inch) | 0.4230 |
| Cutting Width (mm) | 10.74 |
| OverallLength (mm) | 10.74 |
| Overall Length (Decimal Inch) | 0.4230 |
| Insert Length (mm) | 10.7400 |
