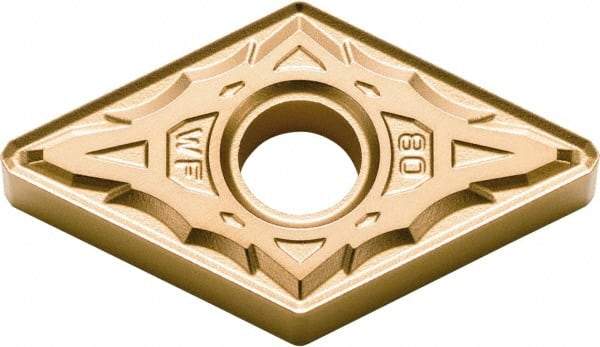

Kyocera - DNMX442 WF Grade CA510 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 41607052
Brand: Kyocera
Model #: 8849176
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMX |
| Insert Size | 442 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CA510 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | WF |
| ISO Number | DNMX150608WF |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | CA5 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
