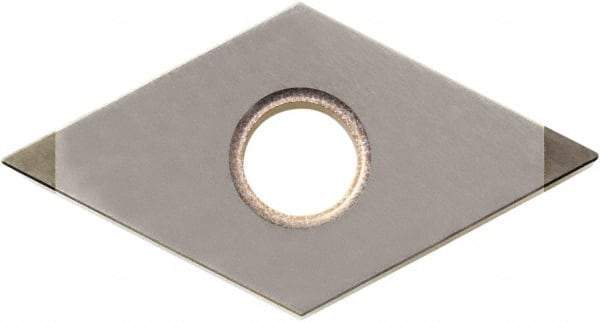

Kyocera - DNGA431 ME Grade KBN05M CBN Turning Insert - Megacoat Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 41606005
Brand: Kyocera
Model #: 8848933
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DNGA |
| Insert Size | 431 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBN05M |
| Coating | Megacoat |
| Chip Breaker | ME |
| ISO Number | DNGA431ME4 |
| Rake | Negative |
| Relief Angle | 0 |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Diamond |
