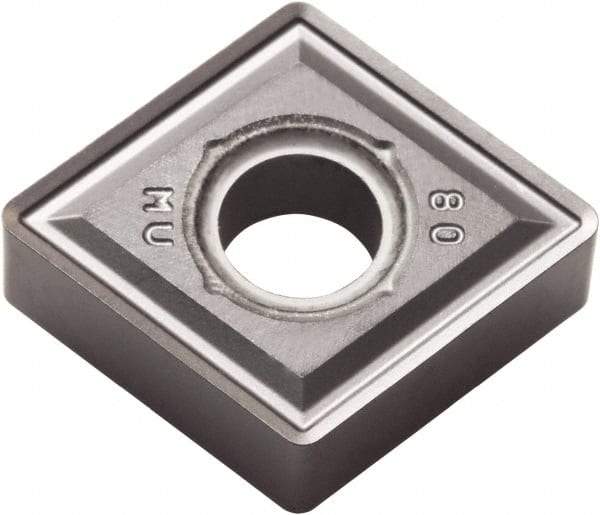

Kyocera - CNMG643 MU Grade PR015S Carbide Turning Insert - Megacoat Hard Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 41604315
Brand: Kyocera
Model #: 8858273
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 643 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | PR015S |
| Coating | Megacoat Hard |
| Chip Breaker | MU |
| ISO Number | CNMG190612MUPR015S |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
