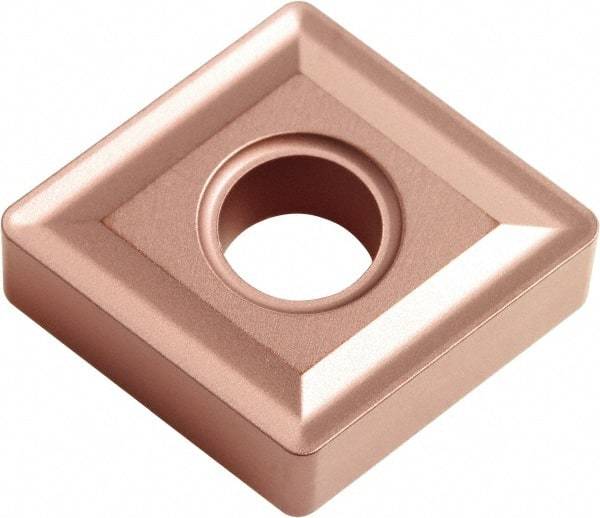

Kyocera - CNMG644 NONE Grade CA315 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 41604091
Brand: Kyocera
Model #: 8848413
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 644 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | CA315 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | None |
| ISO Number | CNMG190616 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CA3 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
