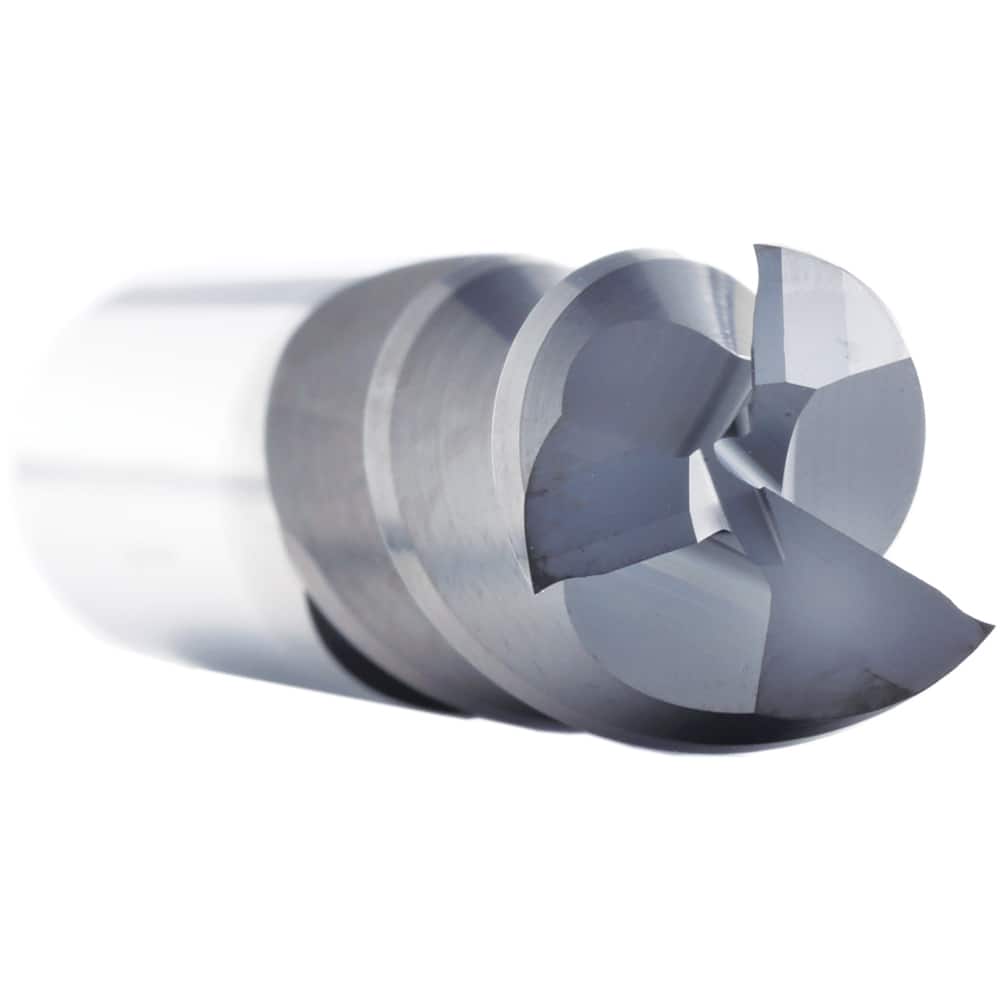

Supermill - Square End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Number of Flutes: 3 ; Length of Cut (Inch): 2-1/4 ; Length of Cut (Decimal Inch): 2.2500 ; Material: Solid Carbide
Item #: 41513276
Brand: Supermill
Model #: AL3F1.0L-DLC
Product Specifications
Square End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Number of Flutes: 3 ; Length of Cut (Inch): 2-1/4 ; Length of Cut (Decimal Inch): 2.2500 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (Decimal Inch) | 2.2500 |
| Material | Solid Carbide |
| Finish/Coating | Diamond-Like Carbon (DLC) |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.00000 |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Series/List | AL3F |
