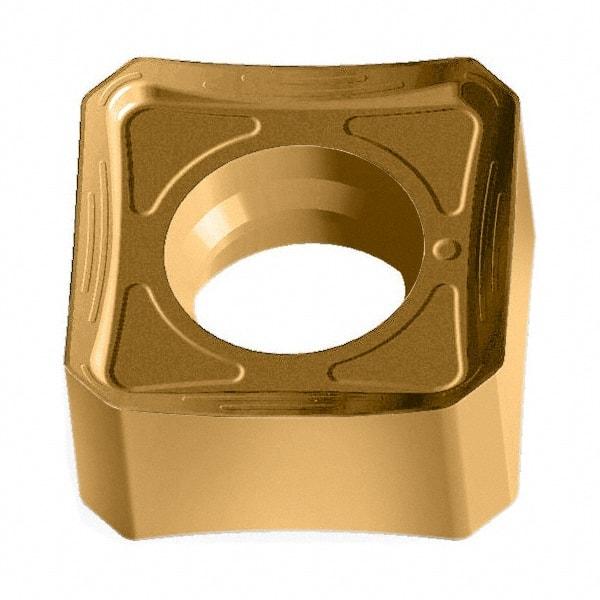

Walter - F57 Grade WKP35G Milling Insert - 6.4mm Thick, 12.7mm Inscribed Circle, 0.3mm Corner Radius
Item #: 41461427
Brand: Walter
Model #: 7170594
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 6.40 |
| Thickness (Decimal Inch) | 0.2520 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Hole Diameter (mm) | 6.10 |
| Hole Diameter (Decimal Inch) | 0.2400 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | SNGX1205ENN-F57 WKP35G |
