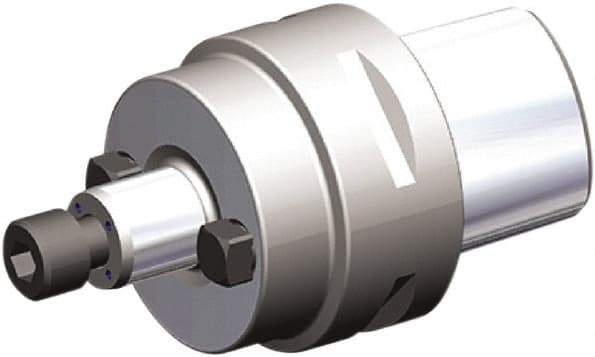

Kennametal - PSC63 Modular Connection 18.5mm Pilot Diam Shell Mill Holder - 25mm Flange to Nose End Projection, 63mm Nose Diam
Item #: 41460817
Brand: Kennametal
Model #: 4091450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 63.00 |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Modular Connection Size | PSC63 |
| Pilot Diameter (mm) | 18.50 |
| Projection Flange to Nose End (mm) | 25.00 |
| Projection Flange to Nose End (Decimal Inch) | 0.9840 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4800 |
| Overall Length (mm) | 81.50 |
| Overall Length (Decimal Inch) | 3.2090 |
