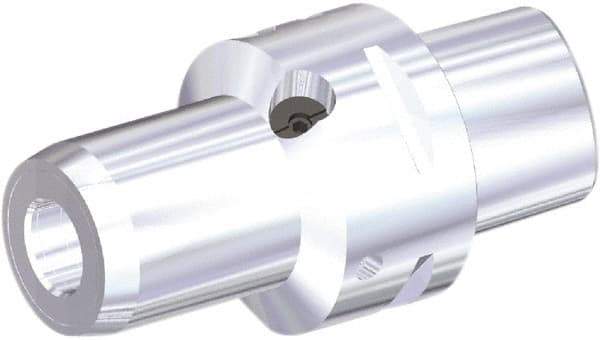

Kennametal - PSC63 Modular Connection, 18mm Hole Diam, Hydraulic Tool Holder/Chuck - 39.6mm Nose Diam, 80mm Projection, 39mm Clamp Depth, Through Coolant
Item #: 41455981
Brand: Kennametal
Model #: 4113750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | PSC63 |
| Hole Diameter (Decimal Inch) | 0.7090 |
| Hole Diameter (mm) | 18.00 |
| Nose Diameter (Decimal Inch) | 1.5590 |
| Nose Diameter (mm) | 39.60 |
| Projection (Decimal Inch) | 3.1500 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 39.00 |
| Clamping Depth (Decimal Inch) | 1.5350 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6460 |
