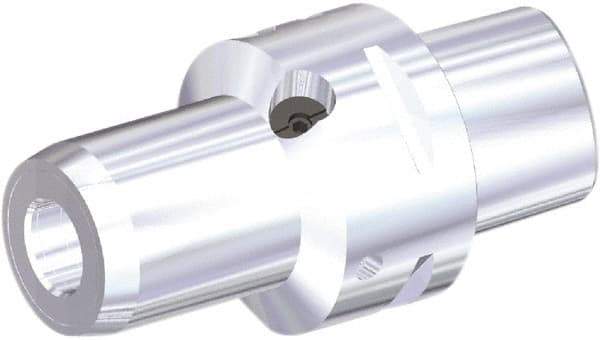

Kennametal - PSC63 Modular Connection, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 41.6mm Nose Diam, 85mm Projection, 41mm Clamp Depth, Through Coolant
Item #: 41455973
Brand: Kennametal
Model #: 4113751
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | PSC63 |
| Hole Diameter (Decimal Inch) | 0.7870 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.6380 |
| Nose Diameter (mm) | 41.60 |
| Projection (Decimal Inch) | 3.3460 |
| Projection (mm) | 85.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.6140 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8430 |
