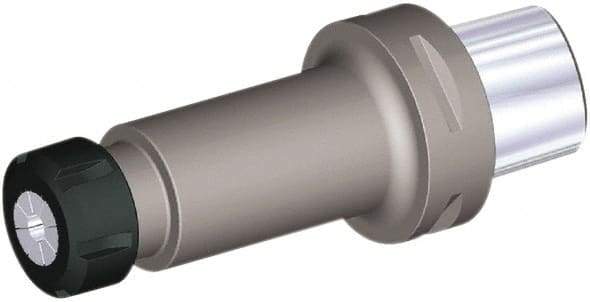

Kennametal - 1/16" to 13/32" Capacity, 100mm Projection, Taper Shank, ER16 Collet Chuck - 130mm OAL, 50mm Shank Diam
Item #: 41455726
Brand: Kennametal
Model #: 6320152
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | PSC50 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0625 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Inch) | 13.3200 |
| Maximum Collet Capacity (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Shank Length (mm) | 30.00 |
| Shank Length (Decimal Inch) | 1.1811 |
| PSC Code | 5136 |
