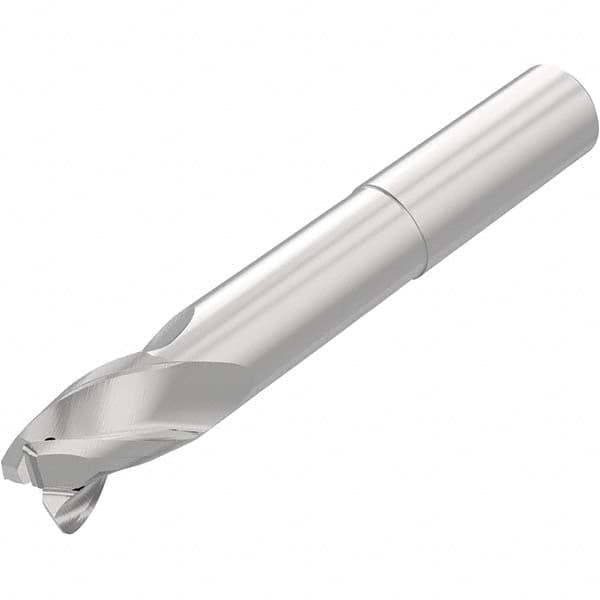

Niagara Cutter - 1" Diam 3 Flute Solid Carbide 0.09" Corner Radius End Mill
Item #: 18996801
Brand: Niagara Cutter
Model #: 03302680
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.09 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Index | Yes |
| Variable Helix | No |
| Reach Length (Inch) | 3-1/8 |
| Neck Diameter (Decimal Inch) | 0.9600 |
| Single or Double End | Single |
| Length Type | Long |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0020 |
| Extended Reach | Yes |
| Shank Type | Straight |
| Series/List | AN230R |
