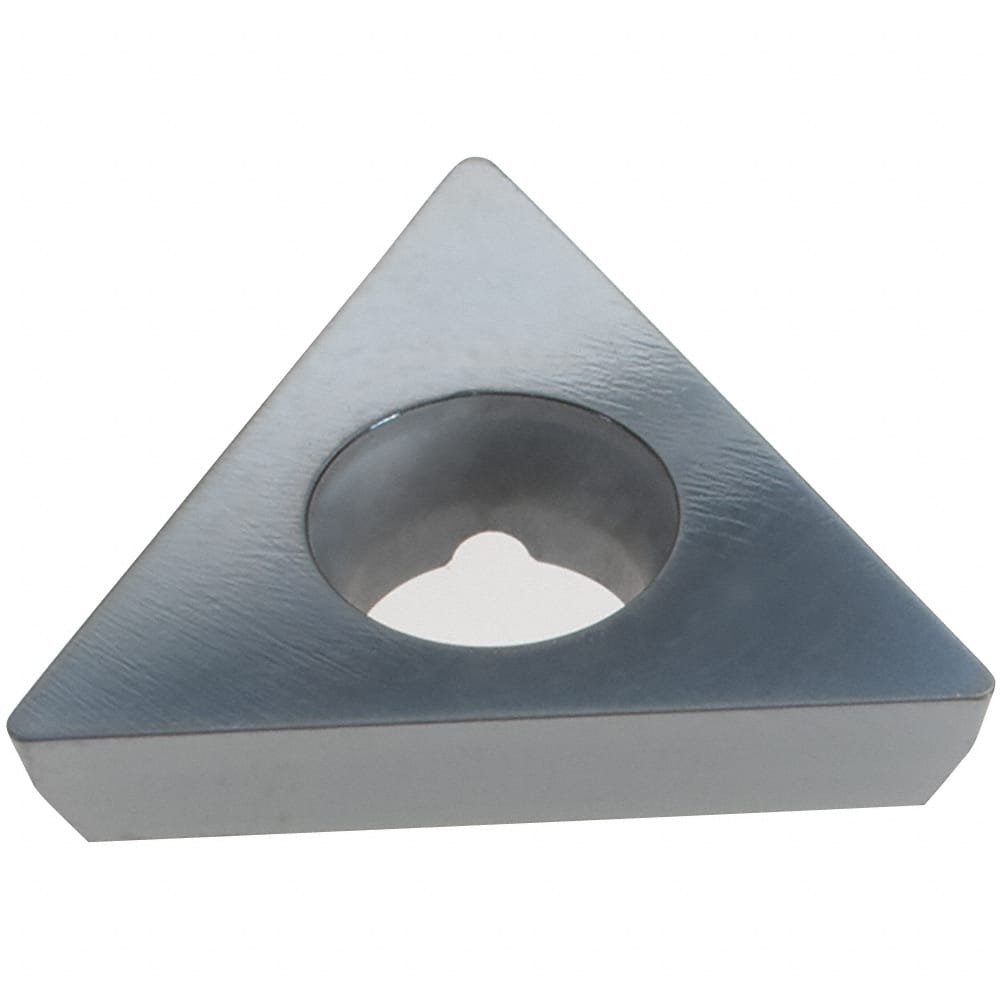

TDEX160304XDEN-DPP30UM Carbide Milling Insert AlCrN Finish, 22mm Long x 0.188″ Thick x 22mm Wide
Item #: 41329483
Brand: Dorian Tool
Model #: 73310195447
Product Specifications
| Insert Style | TDEX |
| Insert Size Code | 160304 |
| Insert Size | 1603 |
| Insert Material | Solid Carbide |
| Material Grade | P15-P30 |
| Manufacturer Grade | DPP30UM |
| Inscribed Circle (Inch) | 1/2 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | TDEX |
| Coating Process | PVD |
| Shape | Triangle |
| Coating/Finish | Coated |
| Included Angle Degree | 60 |
| Length | 22.00 |
| Width (Mm - 2 Decimals) | 22.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1880 |
