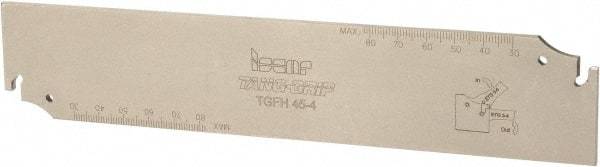

Iscar - 1.7717" Blade Height, 0.134" Blade Width, 8.858" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 41204918
Brand: Iscar
Model #: 2301891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 45.00 |
| Blade Height (Decimal Inch) | 1.7717 |
| Blade Width (mm) | 3.40 |
| Blade Width (Decimal Inch) | 0.1340 |
| Blade Overall Length (mm) | 225.00 |
| Blade Overall Length (Decimal Inch) | 8.8580 |
| Blade Style | TGFH |
| Insert Style | TAG 4.. |
| Insert Width (mm) | 3.70 |
| Insert Width (Decimal Inch) | 0.1457 |
| Series | Tang-Grip |
| Insert Seat Size | 3.4 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 6.3000 |
| Cutting Height (mm) | 38.10 |
| Cutting Height (Decimal Inch) | 1.5000 |
| Minimum Insert Width (mm) | 3.70 |
| Minimum Insert Width (Decimal Inch) | 0.1457 |
| Maximum Insert Width (mm) | 4.50 |
| Maximum Insert Width (Decimal Inch) | 0.1770 |
| Complete Insert Compatibility | TAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4C; TAG N4CB; TAG N4CJT; TAG N4J; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
| Manufacturers Catalog Number | TGFH 45-4 |
