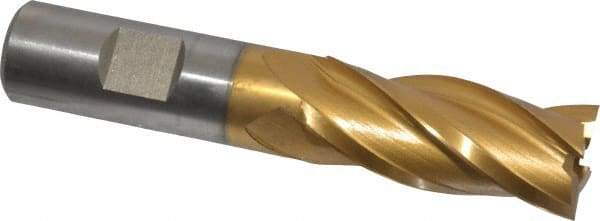

Hertel - 13/16", 1-7/8" LOC, 3/4" Shank Diam, 4-1/8" OAL, 4 Flute, High Speed Steel Square End Mill - Single End, TiN Finish
Item #: 41120130
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 13/16 |
| Mill Diameter (Decimal Inch) | 0.8125 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-7/8 |
| Length of Cut (Decimal Inch) | 1.8750 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 3/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 4-1/8 |
| Center Cutting | NonCenter Cutting |
| Chipbreaker | No |
