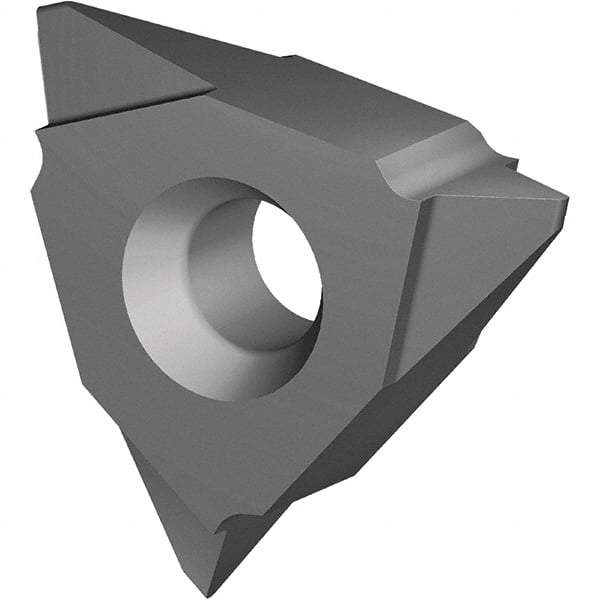

Vargus - 5VIL5/8"V Grade VTX, Internal Partial 60 Threading Insert - 6 to 10mm & 4 to 2-1/2 TPI Int Pitch, TiAIN Finish, Carbide
Item #: 41100637
Brand: Vargus
Model #: 62213
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 5VIL |
| Insert Size | 5/8"V |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Thread Standard | Partial 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Internal Pitch/TPI | 6.0-10.0 mm; 4-2.5 TPI |
| Coating | TiAIN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.35 |
| Corner Radius (Decimal Inch) | 0.0138 |
| Series | V Style |
| Manufacturers Catalog Number | 5VILV60 VTX |
