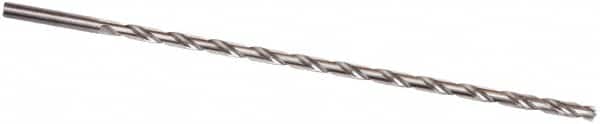

Extra Length Drill Bit: 0.2165″ Dia, 135 °, Solid Carbide Bright Finish, 5.1181″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B272-HPS
Item #: 41098518
Brand: Kennametal
Model #: 3867810
Product Specifications
| Drill Bit Size (mm) | 5.50 |
| Overall Length (mm) | 173.00 |
| Flute Length (mm) | 130.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B272-HPS |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm; -0.0007 to 0.0000 in |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Point Length (mm) | 1.02 |
| Drill Point Length (Decimal Inch) | 0.0400 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 5.1181 |
| Flute By Diameter Ratio | 21xD |
| Maximum Drilling Depth (Decimal Inch) | 4.6063 |
| Maximum Drilling Depth (mm) | 117.00 |
