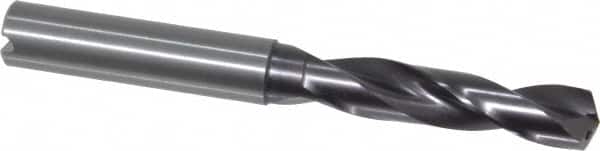

Screw Machine Length Drill Bit: 0.3622″ Dia, 140 °, Solid Carbide FIREX Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5510
Item #: 41078809
Brand: Guhring
Model #: 9055100092000
Product Specifications
| Drill Bit Size (mm) | 9.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | FIREX |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3622 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | 5510 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (mm) | 44.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| Material Grade | Submicron |
