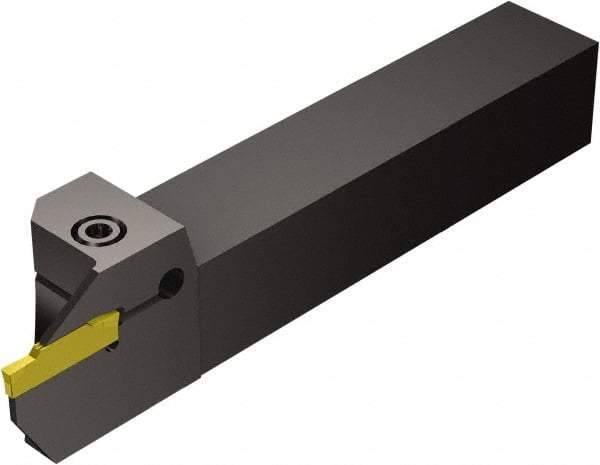

Sandvik Coromant - R/LF123..D, Internal or External, Left Hand, 17.02mm Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 25.4mm Shank Height, 25.4mm Shank Width, 127mm OAL
Item #: 41038951
Brand: Sandvik Coromant
Model #: 5856806
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Maximum Depth of Cut (mm) | 17.02 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | R/LF123..D |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | F |
| Maximum Hole Depth (Decimal Inch) | 1.4575 |
| Maximum Bore Depth (Decimal Inch) | 1.4575 |
| igrvh Maximum Bore Depth (mm) | 37.02 |
| Maximum Workpiece Diameter (mm) | 42.20 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6614 |
| Back of Bar to Cutting Edge (mm) | 127.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Center to Cutting Edge (mm) | 25.90 |
| Center to Cutting Edge (Decimal Inch) | 1.0197 |
| Head Length (mm) | 37.02 |
| Head Length (Decimal Inch) | 1.4575 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
