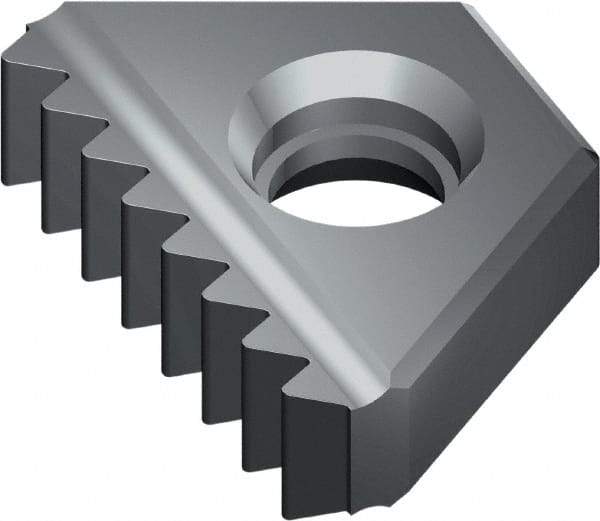

Vargus - 11.50 TPI, Internal/External Thread, NPTF Standard, 5EI VBX Grade Thread Mill Insert - Carbide, TiCN Coating
Item #: 41012196
Brand: Vargus
Model #: 65061
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | 5EI |
| Thread Type | Internal/External |
| Thread Standard | NPTF |
| Threads Per Inch | 11.50 |
| Length (Decimal Inch) | 2.9921 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VBX |
| Material | Carbide |
| Coating | TiCN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
