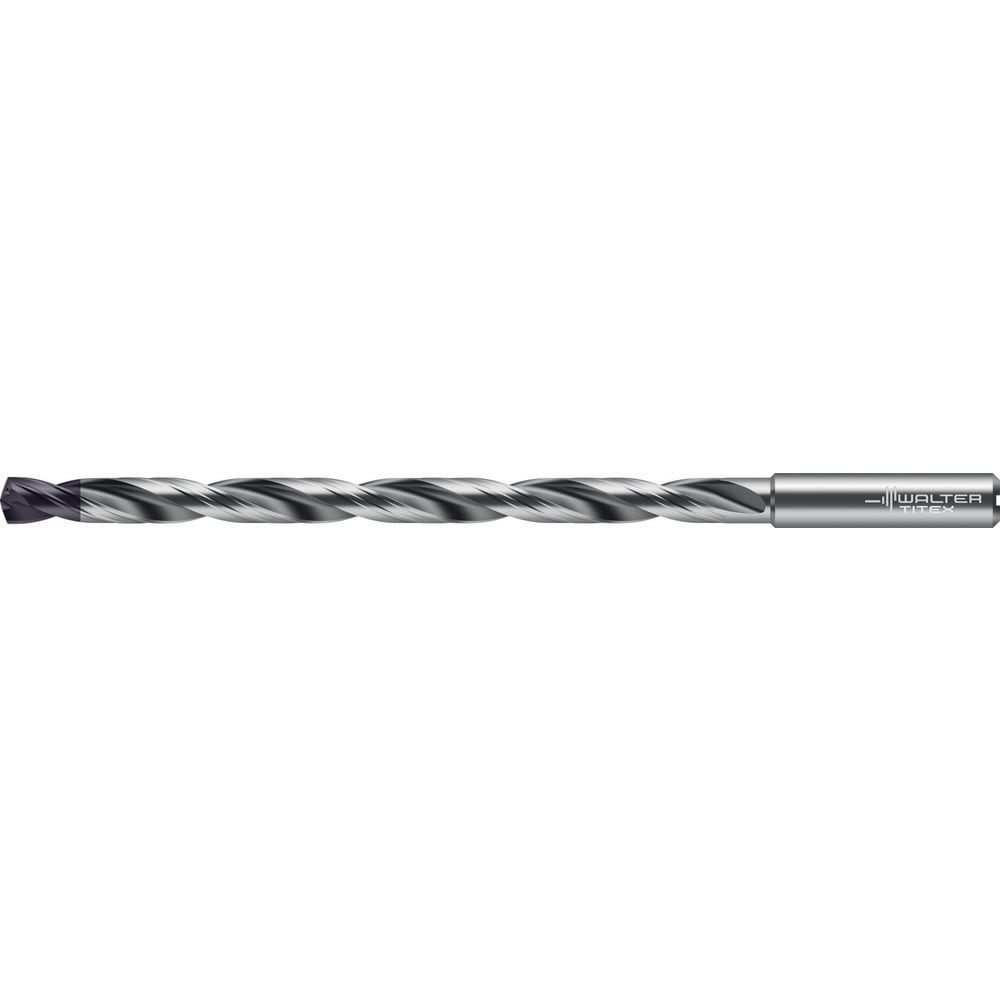

Extra Length Drill Bit: 0.5315", 140 °, Carbide
Item #: 82371832
Brand: Walter-Titex
Model #: 8325369
Product Specifications
| Drill Bit Size (mm) | 13.50 |
| Overall Length (mm) | 230.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 182.00 |
| Point Type | Standard |
| Series | DC180 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Point Length (mm) | 2.46 |
| Drill Point Length (Decimal Inch) | 0.0967 |
| Overall Length (Decimal Inch) | 9.0551 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.0000 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Flute Length (Decimal Inch) | 7.1654 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 6.6142 |
| Maximum Drilling Depth (mm) | 168.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
