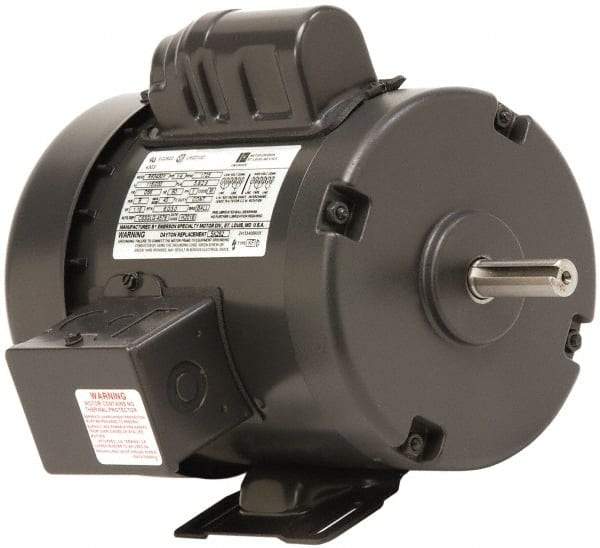

US Motors - 1 Max hp, 1,725 Max RPM, Single Cap Start Electric AC DC Motor - 115/208-230 V Input, Single Phase, 143T Frame, 7/8" Shaft Diam, Rigid Base Mount, ODP Enclosure
Item #: 40698003
Brand: US Motors
Model #: T1CA2J14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Cap Start |
| Type of Enclosure | ODP |
| Maximum HorsePower | 1 |
| Minimum Horsepower | 1 |
| Phase | Single |
| Input Voltage | 115/208-230 |
| Frame Size | 143T |
| Full Load Amperage | 14.0/6.9-7.0 |
| Mount Type | Rigid Base |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Service Factor Rating | 1.15 |
| Insulation Class | B |
| Maximum RPM | 1725 |
| PSC Code | 6105 |
