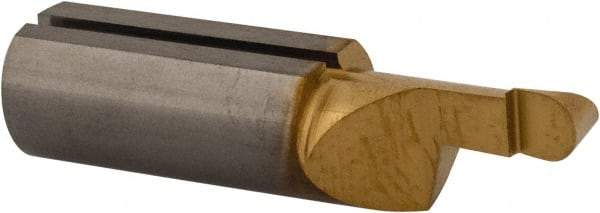

Iscar - 3mm Groove Width, 8mm Min Hole Diam, 11mm Max Hole Depth, Face Grooving Tool - 11mm Projection, 26mm OAL, Solid Carbide, TiAlN/TiN Finish
Item #: 40629214
Brand: Iscar
Model #: 6403909
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.00 |
| Groove Width (Decimal Inch) | 0.1180 |
| Groove Width (mm) | 3.00 |
| Projection (Decimal Inch) | 0.4330 |
| Projection (mm) | 11.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.3150 |
| Minimum Hole Diameter (mm) | 8.00 |
| Maximum Hole Depth (Decimal Inch) | 0.4330 |
| Maximum Hole Depth (mm) | 11.00 |
| Overall Length (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 26.00 |
| Finish/Coating | TiAlN/TiN |
| Manufacturer Grade | IC1008 |
