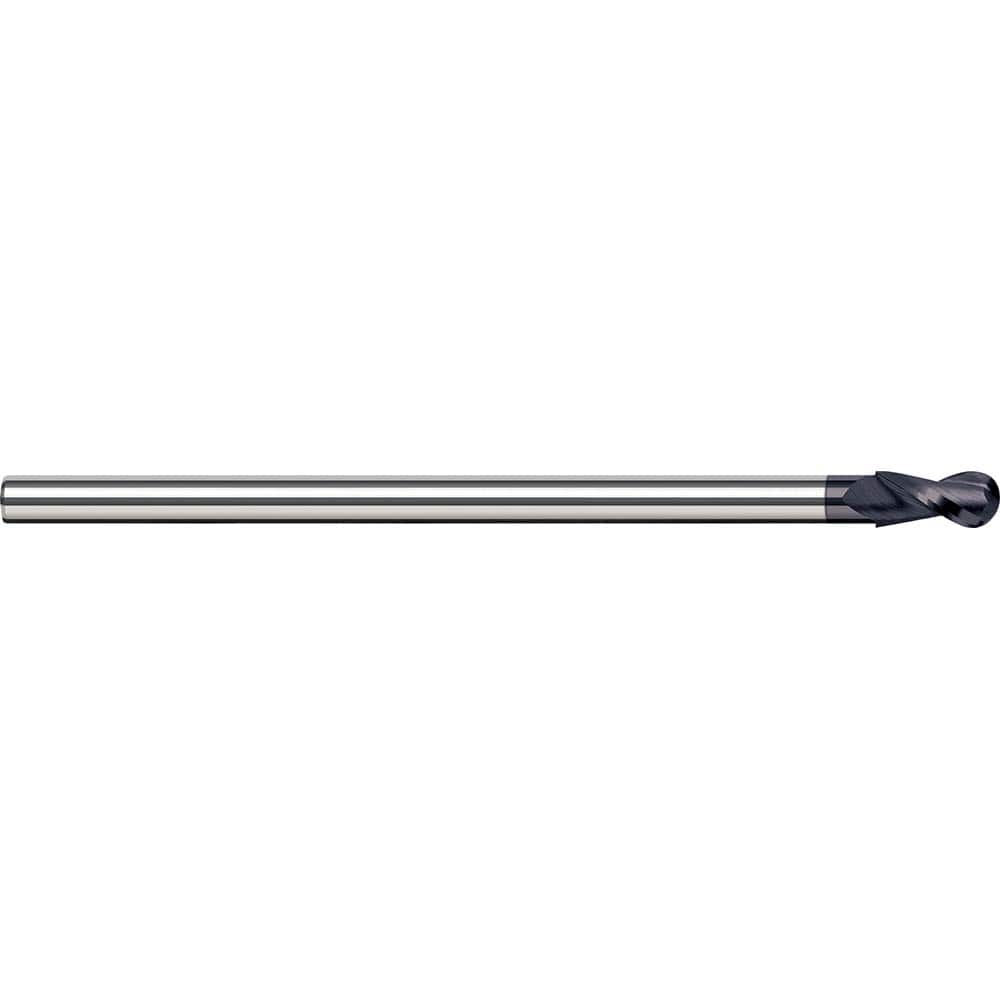

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.4690 ; Material: Solid Carbide ; Overall Length (Inch): 4
Item #: 40502494
Brand: Harvey Tool
Model #: 24720-C3
Product Specifications
Ball End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.4690 ; Material: Solid Carbide ; Overall Length (Inch): 4
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.4690 |
| Material | Solid Carbide |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.00000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 35 |
| Variable Helix | No |
| Series/List | End Mills - Ball - Reduced Shank |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
