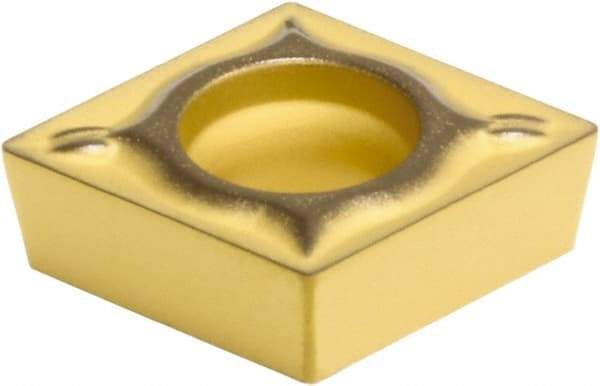

Hertel - CCMT32.51 H2U Grade HC315T Carbide Turning Insert - Al2O3 Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 40496333
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | HC315T |
| Coating | Al2O3 |
| Material Grade | HC315T |
| Chip Breaker | H2U |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCMT09T304 |
| Rake | Neutral |
| Relief Angle | 7 |
| Proprietary Coating Designation | FF |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| Shape | Diamond |
