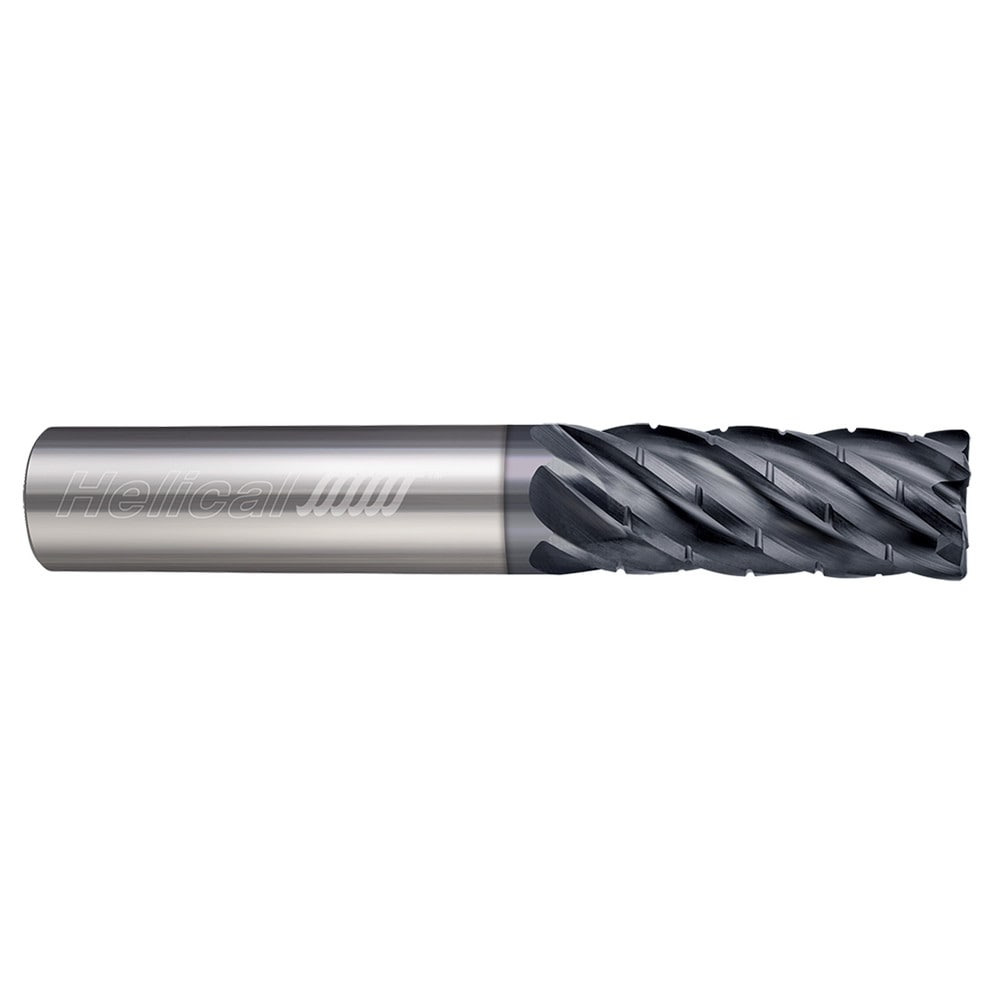

Corner Radius End Mill: 3/4" Dia, 3-1/4" LOC, 0.0300" Radius, 6 Flute, Solid Carbide
Item #: 82001330
Brand: Helical Solutions
Model #: 88526
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 3-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | APLUS |
| Overall Length (Inch) | 6 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 6.00 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.2500 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| UNSPSC Code | 27112803 |
| Series | Steels - 6 Flute - Corner Radius - Variable Pitch - Chipbreaker |
| Country of Origin | UNITED STATES |
