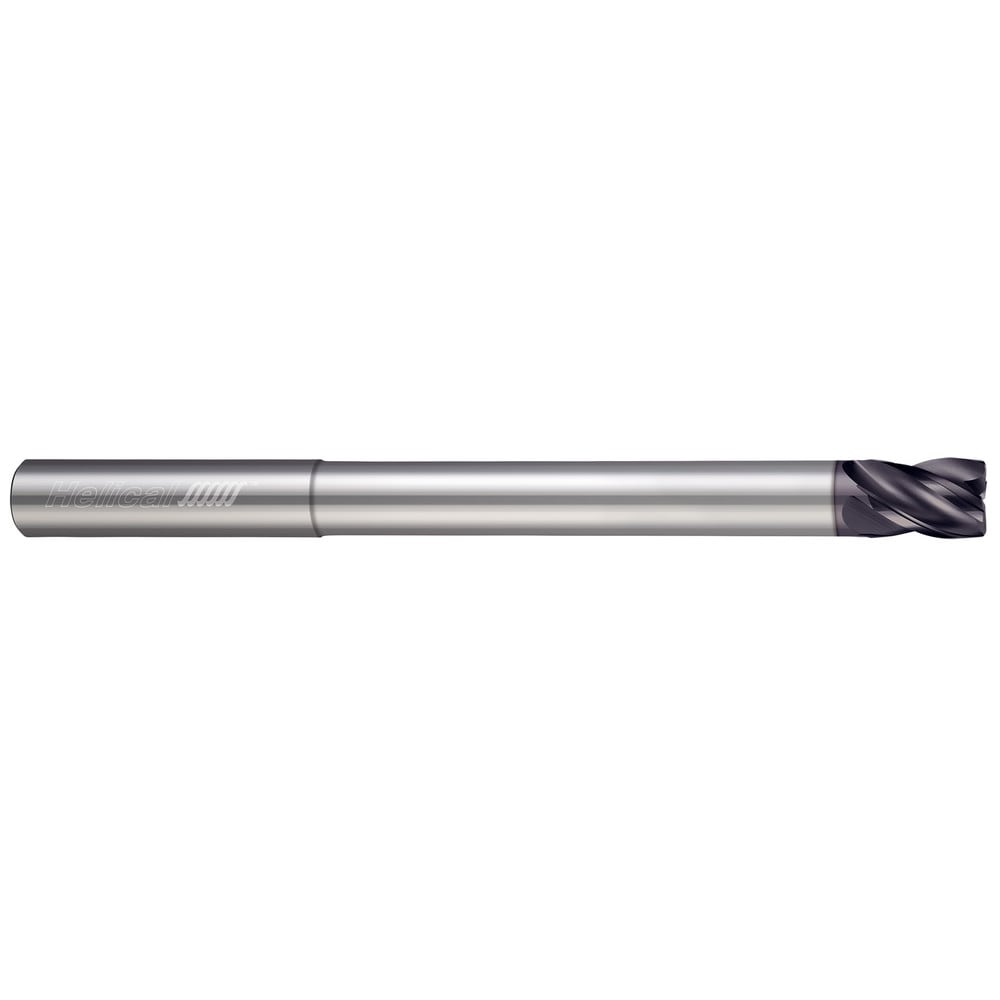

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 0.0600" Radius, 4 Flute, Solid Carbide
Item #: 82005182
Brand: Helical Solutions
Model #: 88573
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (mm) | 12.70 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | APLUS |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 4.00 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Reach Length (Inch) | 1-3/4 |
| UNSPSC Code | 27112803 |
| Series | Steels - 4 Flute - Corner Radius - Variable Pitch - Reduced Neck |
| Country of Origin | UNITED STATES |
