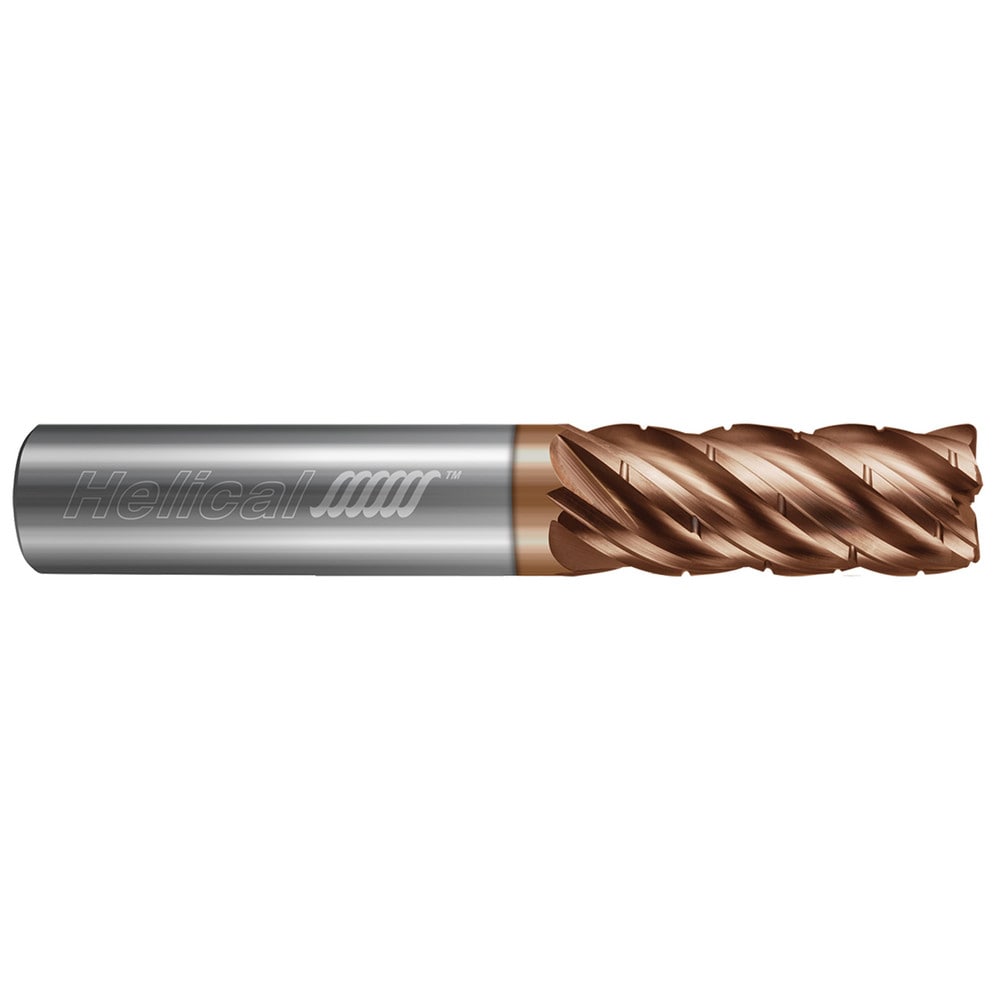

Corner Radius End Mill: 1/8" Dia, 3/4" LOC, 0.0100" Radius, 5 Flute, Solid Carbide
Item #: 81976607
Brand: Helical Solutions
Model #: 88509
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | Tplus |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 2.50 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| UNSPSC Code | 27112803 |
| Series | Stainless & High Temp - 5 Flute - Corner Radius - Variable Pitch - Chipbreaker |
| Country of Origin | UNITED STATES |
