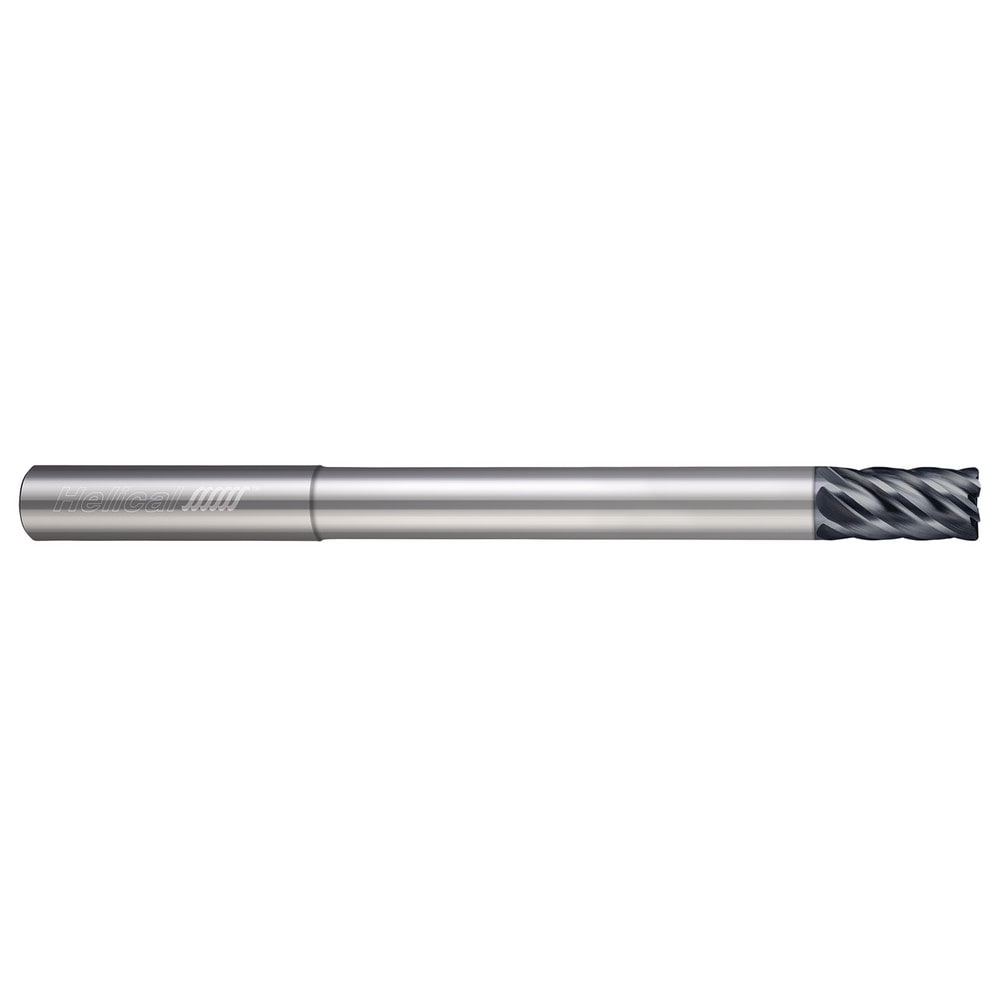

Corner Radius End Mill: 1/8" Dia, 5/32" LOC, 0.0100" Radius, 6 Flute, Solid Carbide
Item #: 82007675
Brand: Helical Solutions
Model #: 88611
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 5/32 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | APLUS |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 2.50 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1562 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Inch) | 1 |
| UNSPSC Code | 27112803 |
| Series | Steels - 6 Flute - Corner Radius - Variable Pitch - Reduced Neck |
| Country of Origin | UNITED STATES |
