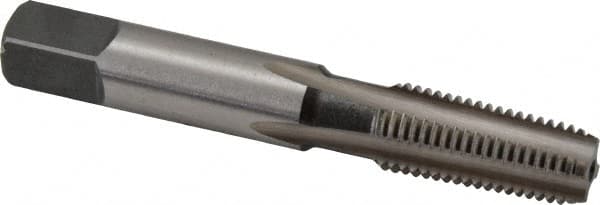

Cleveland - 1/16-27 NPTF Thread, 4 Flute Standard Pipe Tap - 2-1/8" OAL, 11/16" Thread Length, 5/16" Shank Diam, Bright Finish, High Speed Steel
Item #: 40232225
Brand: Cleveland
Model #: C64058
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size | 1/16-27 |
| Thread Standard | NPTF |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.1250 |
| Hook | Regular |
| Thread Length (Decimal Inch) | 0.6880 |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.2340 |
| Chamfer | 1 to 3-1/2 |
