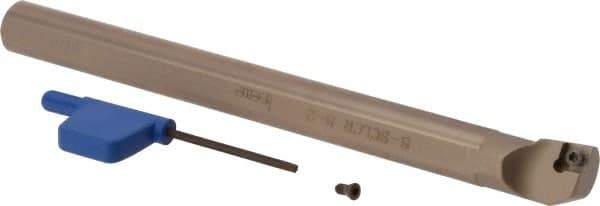

Iscar - 0.622" Min Bore Diam, 6" OAL, 1/2" Shank Diam, S-SCLC Indexable Boring Bar - CC.T 2 Insert, Screw Holding Method
Item #: 40219628
Brand: Iscar
Model #: 3601970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.6220 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | CC.T 2 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.3500 |
| Rake Angle | -7 |
| Complete Insert Compatibility | CCGT 2-.004-AS; CCGT 2-.004-SM; CCGT 2-0; CCGT 2-0-AS; CCGT 2-0-SM; CCGT 2-0L; CCGT 2-1; CCGT 2-1-AS; CCGT 2-1L; CCMT 2-0; CCMT 2-0-SM; CCMT 2-0T; CCMT 2-1-14; CCMT 2-1-SM; CCMT 2-1T; CCMT 2-2-SM |
