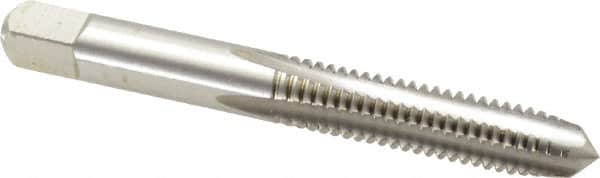

Cleveland - 5/16-18 UNC 4 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 2-23/32" OAL, 0.69" Thread Length, H11 Limit, 0.005" Oversize
Item #: 40204505
Brand: Cleveland
Model #: C54514
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 5/16-18 |
| Thread Limit | H11 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-23/32 |
| Oversize | Yes |
| Series/List | 1002 |
| Thread Length (Decimal Inch) | 0.6900 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless |
