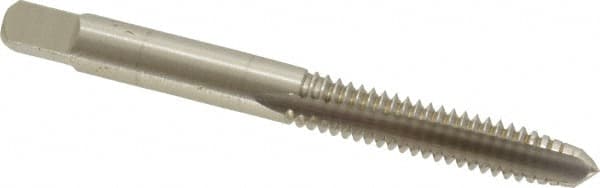

Cleveland - 1/4-20 UNC 2B 3 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 63.5mm OAL, 25.4mm Thread Length, H5 Limit, Oversize
Item #: 40203903
Brand: Cleveland
Model #: C54463
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 1/4-20 |
| Class of Fit | 2B |
| Thread Limit | H5 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (mm) | 63.50 |
| Oversize | No |
| Series/List | 1002 |
| Thread Length (Decimal Inch) | 0.6300 |
| Thread Length (mm) | 25.40 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless |
