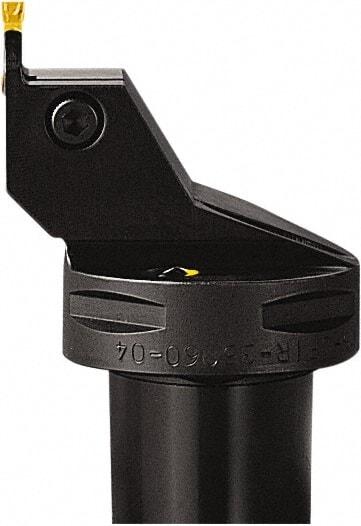

Seco - LC.. 1604.. Insert, 59.94mm Head Length, 4mm Min Groove Width, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C5, Series Multi-Directional Turning (MDT), Seco-Capto
Item #: 40042152
Brand: Seco
Model #: 91715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Multi-Directional Turning (MDT); Seco-Capto |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LC.. 1604.. |
| Head Length/Projection (mm) | 59.94 |
| Head Length/Projection (Decimal Inch) | 2.3600 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 35.05 |
| Center to Cutting Edge (Decimal Inch) | 1.3800 |
| Complete Insert Compatibility | LCGF 160402-0400-GG; LCGF 160402-0400-GS; LCGF 1604M0-0400-RP; LCGN 160402-0400-FG; LCGN 160402-0420-FG; LCGN 160402-0440-FG; LCGN 160404-0400E-LF; LCGN 160404-0400E25-LF; LCGN 160404-0400S-LF; LCGN 160405-0240-DY; LCGN 160405-0265-DY; LCGN 160410-0300-DY |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 11.94 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
