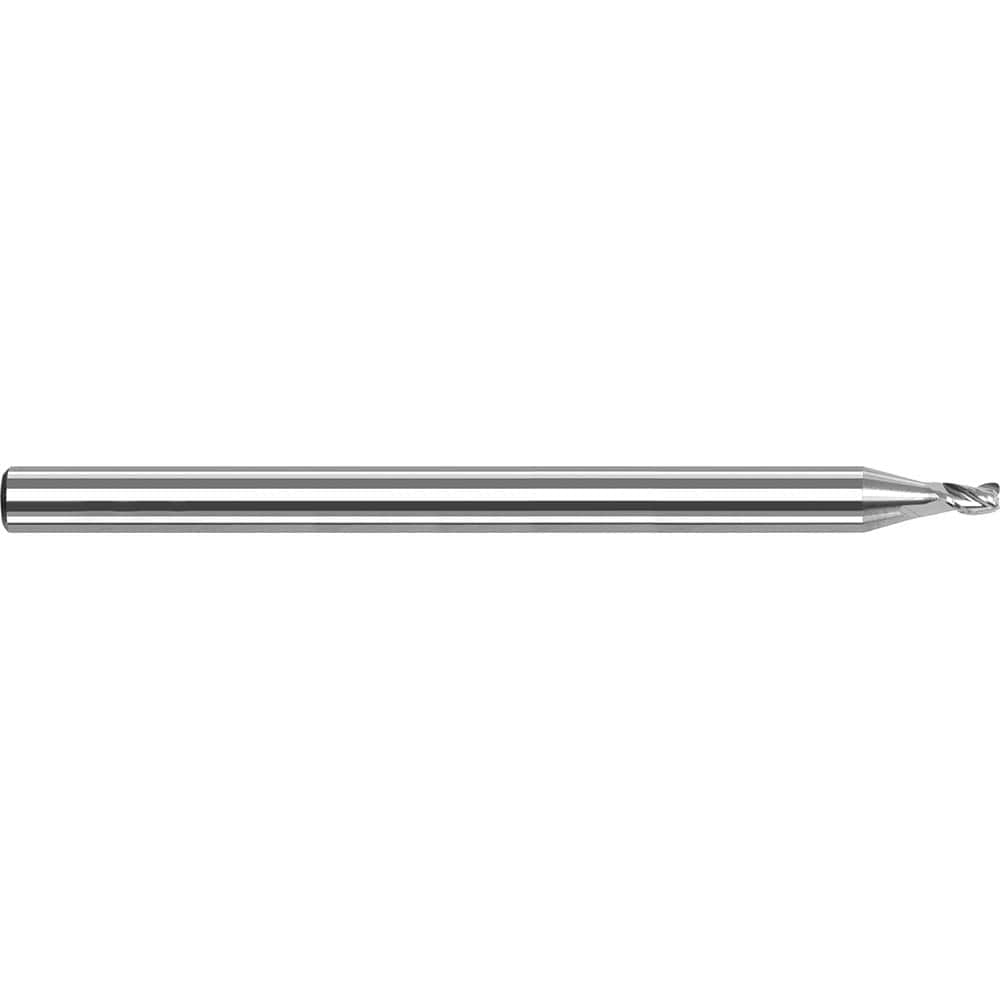

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 6.00 ; Mill Diameter (Decimal Inch): 0.2360 ; End Type: Corner Radius ; Corner Radius (Inch): 1/16 ; Corner Radius (Decimal Inch): 0.0620 ; Number of Flutes: 3
Item #: 39999065
Brand: Harvey Tool
Model #: 56550
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 6.00 ; Mill Diameter (Decimal Inch): 0.2360 ; End Type: Corner Radius ; Corner Radius (Inch): 1/16 ; Corner Radius (Decimal Inch): 0.0620 ; Number of Flutes: 3
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2360 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Decimal Inch) | 0.2800 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Dovetail Cutters - O-Ring Slotting End Mills |
