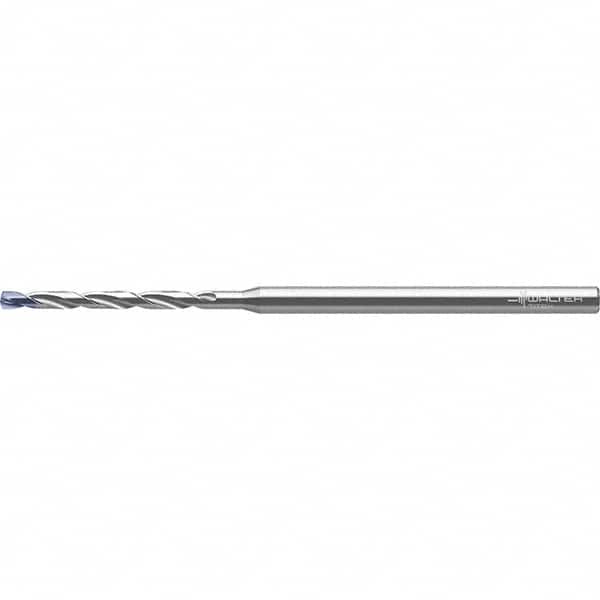

Micro Drill Bit: 0.0846″ Dia, 140 °, Solid Carbide AlCrN Finish, 2.48″ OAL, RH Cut, Series DB133-08-A0
Item #: 39981451
Brand: Walter-Titex
Model #: 6712934
Product Specifications
| Drill Bit Size (mm) | 2.15 |
| Drill Bit Size (Decimal Inch) | 0.0846 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 25.00 |
| Coating/Finish | AlCrN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 21.00 |
| Series | DB133-08-A0 |
| Overall Length (Decimal Inch) | 2.4800 |
| Overall Length (mm) | 63.00 |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; N |
| Secondary Workpiece Material | Glass; Graphite; Titanium; Nickel; Cobalt; Titanium Alloy; Iron Alloy |
| Secondary Workpiece Material Code | S; H; O |
| Standards | DIN 6535 HA |
| Shank Diameter (Decimal Inch) | 0.1180 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.3400 |
| Shank Length (mm) | 34.00 |
| Flute By Diameter Ratio | 8xD |
