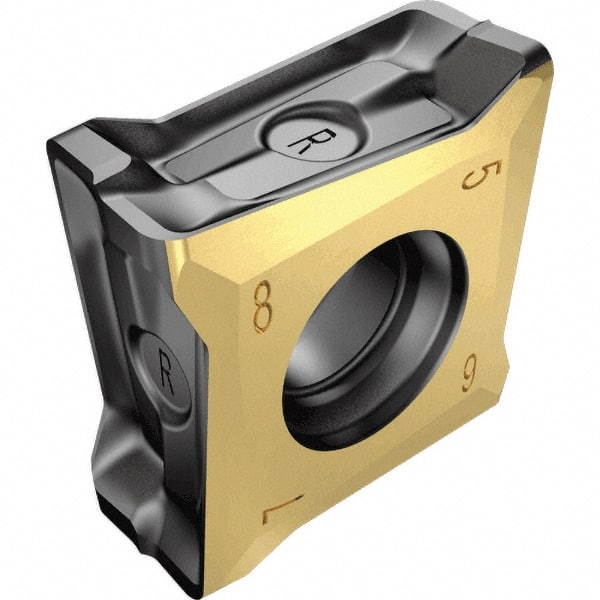

Iscar - T890LNAT1306PN-W IC810 Carbide Milling Insert
Item #: 39924071
Brand: Iscar
Model #: 3315294
Product Specifications
| Insert Style | LNAT |
| Insert Size | 1306 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Width (mm) | 5.90 |
| Width (Decimal Inch) | 0.2320 |
| Length (mm) | 13.78 |
| Length (Decimal Inch) | 0.5420 |
| Thickness (mm) | 5.89 |
| Thickness (Decimal Inch) | 0.2320 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutter Series Compatibility | T890 |
