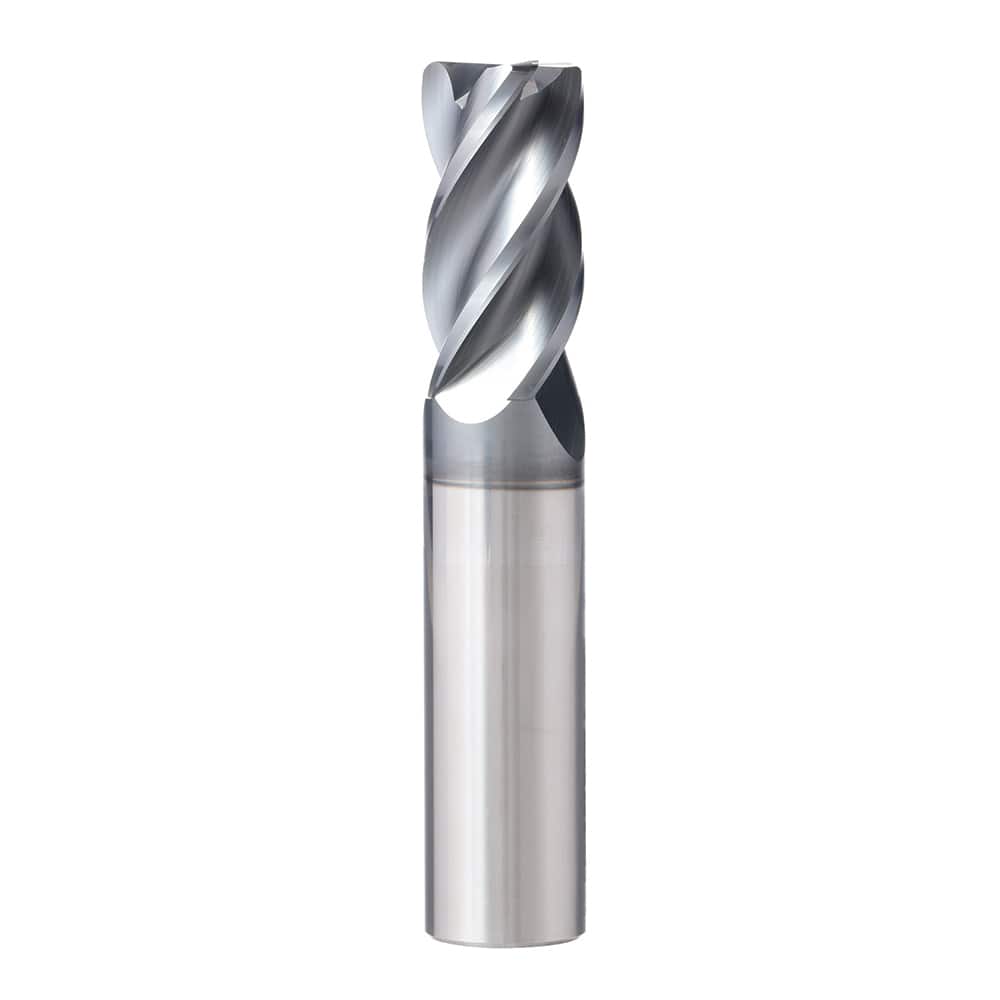

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.375 ; End Type: Corner Radius ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: AlCrN
Item #: 39920087
Brand: Supermill
Model #: XPVS375XL-060
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.375 ; End Type: Corner Radius ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: AlCrN
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.375 |
| End Type | Corner Radius |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 4 |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Series/List | XPVS |
| Chipbreaker | No |
