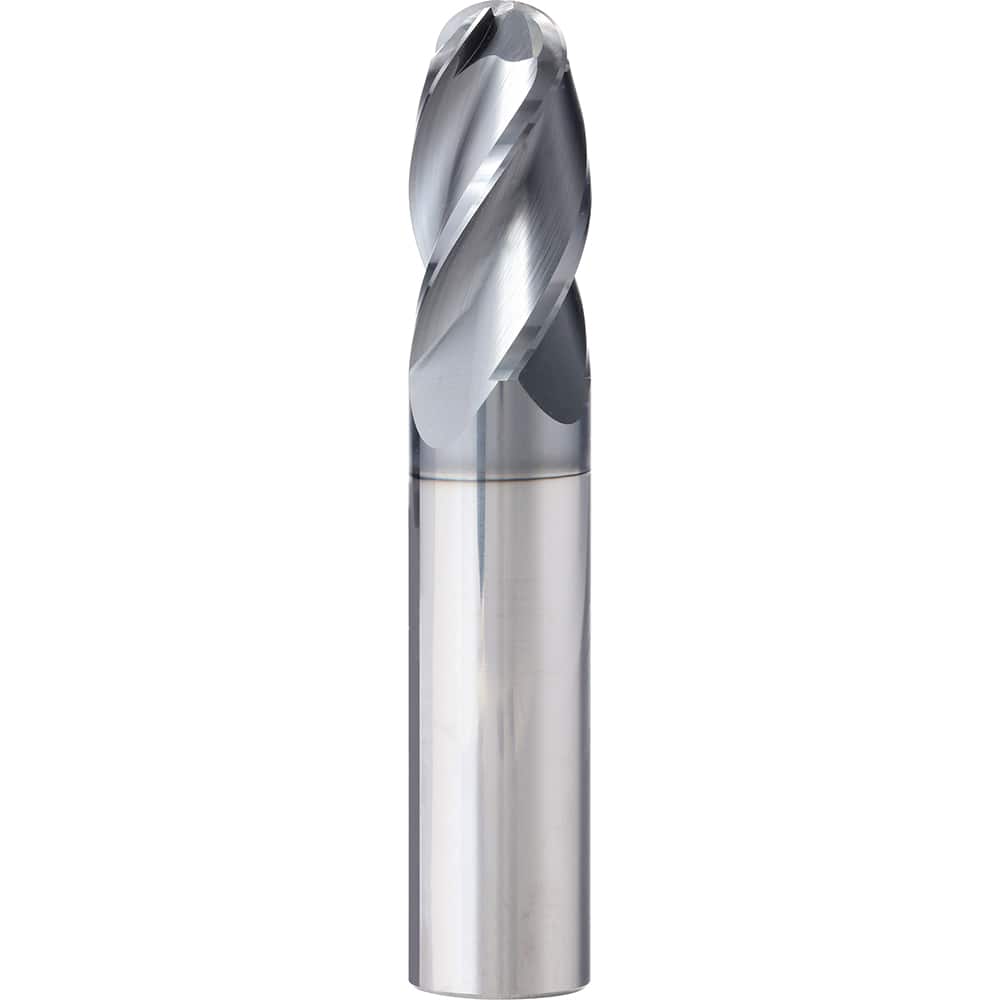

Ball End Mill: 0.375″ Dia, 1.75″ LOC, 4 Flute, Solid Carbide 4″ OAL, 3/8″ Shank Dia, 35 ° Helix, AlTiN Coated, Single End, Series SAPB-NB
Item #: 39751243
Brand: Supermill
Model #: SAPB375XLA
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 1-3/4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 35 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | SAPB-NB |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7500 |
| Manufacturers Catalog Number | 21532 |
