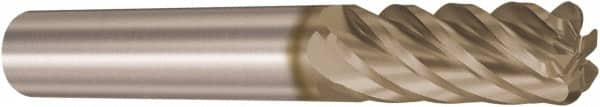

Seco - 25mm, 50mm LOC, 25mm Shank Diam, 125mm OAL, 6 Flute, Solid Carbide Square End Mill - Single End, HXT Finish, Helical Flute, 38° Helix, Centercutting, Right Hand Cut, Right Hand Flute
Item #: 39728282
Brand: Seco
Model #: 03169498
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
HXT is a hard top coating that offers advanced thermal protection and high wear resistance. HXT is a proprietary coating exclusive to Seco Tools, Inc.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Number of Flutes | 6 |
| Length of Cut (mm) | 50.00 |
| Material | Solid Carbide |
| Finish/Coating | HXT |
| Shank Diameter (mm) | 25.00 |
| Single or Double End | Single |
| Overall Length (mm) | 125.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Flute Type | Helical |
| Length Type | Long |
| Helix Style | Medium |
| Chipbreaker | No |
| Extended Reach | No |
